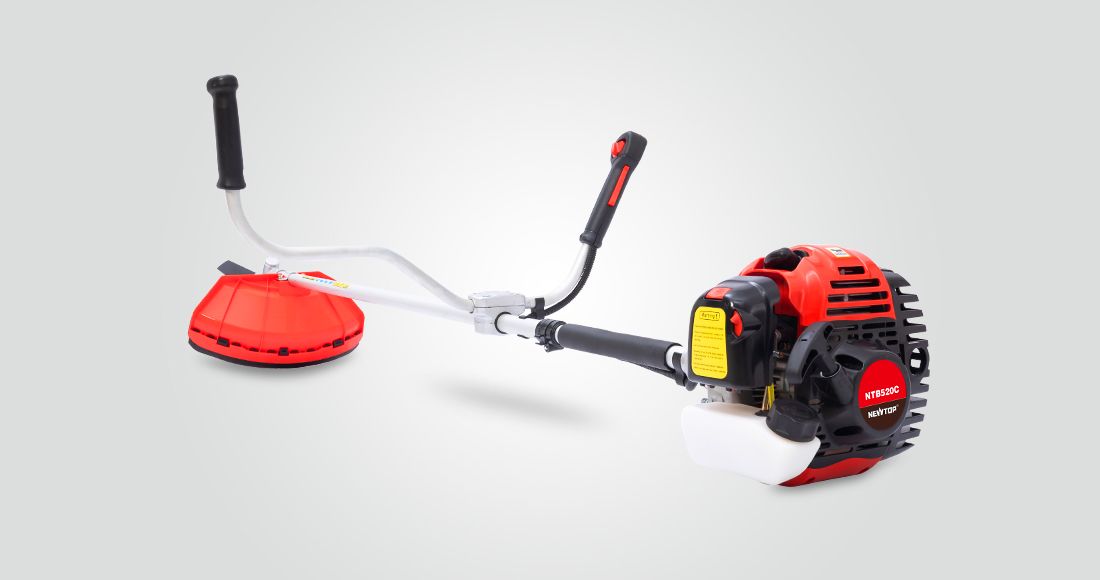

Model NO. | NTB520C |
Power type | Single Cylinder, Two-stroke, Air-cooling |
Matchengine | 1E44FA |
Cylinder displacement (cc) | 51.7cc |
Power output (kW/hp/rpm) | 1.5kW/2.0hp/6500rpm |
Max engine speed with cutting attachment (r/min) | 9000r/min |
Carburetor type | Rotary valve |
Nylon cutting (ømm) | 2.5mm |
Diameter of AI. pipe | 26mm |
Fuel capacity | 900ml (231.68 oz.) |
Fuel mixture ratio | 25:1(Gasoline 25 : Two-cycle Oil 1) |
Ignition system | Digital |
Dry weight (excl. cutting equipment) | 9.2kg (20 lbs.) |
Gross weight | 10kg (22 lbs.) |
